Portable Surgical Diathermy Electric Knife Surgery/Electro Surgical Unit for ENDO surgery

Medical High Frequency Electrosurgical Uunit with isolated output design, it provides proper power outputfor cutting and coagulating tissue in both monopolar and bipolar s urgeries. It can meet the needs of many surgical operations. Adopting singlechip microcomputer control technology and modular design, it features simple design, convenient maintenance, powerful functions, stable performance and easy operation, and is equipped with versatile jacks for

accessories.

Technical Parameters

1. Ambient temp. range: 5ºC～40 ºC

2. Relative Humidity Range: ≤80

3. Atmospheric Pressure Range: 86.0～106.0kpa

4. Power: 220V±22V, 50Hz±1

5. Operating Freq: 330～460kHz;

6. Rated Power: 1100VA±10%

7.Type: CF

Power Consumption: ≤1100VA (Cut function 400W)

Transportation and Storage

Nine output mode

a) Cut: 400W

b) Blend 1: 250W

c) Blend 2: 200W

d) Blend 3: 150W

e) Electro Coag 1: 150W

f) Electro Coag 2: 120W

g) Electro Coag 3: 100W

h) Bipolar Coag 1: 70W

i) Bipolar Coag 2: 70W

Power: 220V±22V,50Hz±1Hz

Operation method

After well connect the cables for Electrosurgical unit & Endoscope;

Well install power cable, Electrode cable, Electrode.

Turn on electrosurgical unit, once it has data indication in display window, press “Endoscope” button, then the machine will enter into self adjustment status.

It will adjust to the high voltage cut technology, spray coagulation technology which suitable for operation under endoscope, which can be use for vaporization working, gastroscope cut, gastroscope coagulation, hysteroscope use etc.
matching the electrode contact inspection system, which real-time test and evaluate the effective contact area between electrode and derma, if the contact area was found low to a danger level, system will automatic cutout and gives alarm indication.
Independent output interface, ensured that only the opened interface can gives output, other closed interface has no output, which is more safe.

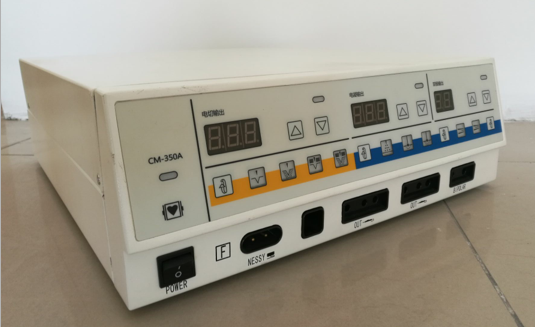

Product Show

  Shanghai Huifeng Medical Instrument Co., LTD. is headquartered in Shanghai city, China, which is known as "Oriental Paris". Innovated and developed steadily since the establishment of the company.

  With nearly 30 years of production history, the company has been developed into a high-tech enterprise with rich experience in Scientific Research, Development, Manufacturing and Sales of Listed Company.

  Specializing in the Manufacturing of LED Shadowless Operating Lamp, Operation Table, Medical Pendant, Head Bed Panel, Hospital Bed, Electrosurgical Unit, Patient Monitor, Oxygen Bag, Air Mattress and Pneumatic Tourniquet,etc. The products are competitive enough in the domestic market in China and also popular in the global market.

  The power distribution networks is mainly located in the Asia-Pacific region and Africa. Actively expands its technical cooperation with Europe, the United States and other countries. The sales based in more than 50 countries around the world. It is committed to promoting "SHANGYI" brand and “HFMED” brand. Gradually strive to achieve a global distribution of sales networks.

  Adhering to the concept of medical care of integrity and service, finds its own niche point, and creates another blue ocean market for the medical industry. Respect life-focus on professionalism，excellence，and continuous development as the highest guiding principle of action.

  "Reputation First, Service Foremost" is the Corporate Philosophy. All staff attach great importance to quality than to quantity. The company is certified to ISO9001, ISO13485, CE, SGS, and FDA. Honored as Five-star Integrity Enterprise in Shanghai and Famous Trademark in China. To maintain the good business reputation, provide well-qualified product and service to satisfy our customer.
