Double Head Ceiling Type Shadowless Operation Lamp Over 150000lux Illuminance

    Buy cheap Double Head Ceiling Type Shadowless Operation Lamp Over 150000lux Illuminance from wholesalers

    Buy cheap Double Head Ceiling Type Shadowless Operation Lamp Over 150000lux Illuminance from wholesalers
    • Buy cheap Double Head Ceiling Type Shadowless Operation Lamp Over 150000lux Illuminance from wholesalers
    • Buy cheap Double Head Ceiling Type Shadowless Operation Lamp Over 150000lux Illuminance from wholesalers

    Double Head Ceiling Type Shadowless Operation Lamp Over 150000lux Illuminance

    Ask Lasest Price
    Brand Name : HFMED
    Model Number : ZF700/500
    Certification : CE,ISO,SGS,FDA
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 sets/month
    Delivery Time : 5~7 days after the receipt of payment
    • Product Details
    • Company Profile

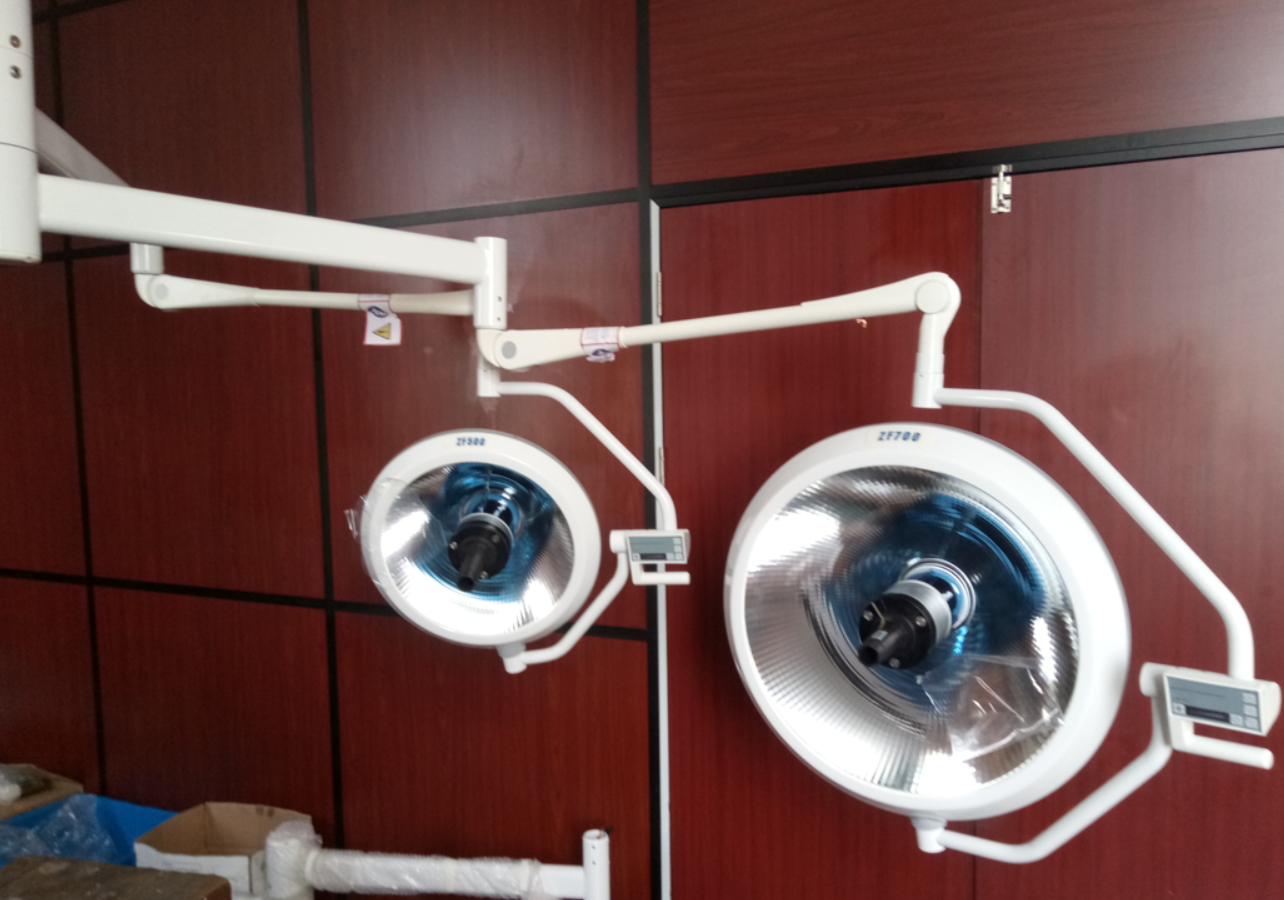

    Double Head Ceiling Type Shadowless Operation Lamp Over 150000lux Illuminance


    double head ceiling type over 150000lux illuminance shadowless operating lamp with halogen bulbs


    Maintenance of Shadowless Operating Lamp


    1. Cleaning

    After a period of operation the shadowless operating lamp must be cleaned due to the casing and faceplate of shadowless operating lamp may be contaminated by dusts, blood or body fluid.


    1.1 Casing Cleaning

    With liquid paraffin and soft cloth, not only the casing of lamp can be cleaned, but also its coating may be protected. Repeatedly scrub seriously-contaminated parts.


    Caution: Acid, alkali solution or grinding agents shall not be used in scrubbing.


    1.2 Faceplate Cleaning

    Faceplate of this lamp is made of polymers, serious contamination or friction marks may considerably effect the illumination, so only neutral cleaning agents and clean soft cloth may be used in cleaning.


    Caution: Acid, alkali solution or grinding agents shall not be used in scrubbing.


    2. Sterilization of Hand Grip

    Hand grip is made of high-temperature resistant material and it may be immersed into boiled water or be applied with alcohol for sterilization.


    Caution: formalin and other solvent solution shall not be used in scrubbing.


    3. Routine Inspection


    3.1 Connection Inspection

    As a permanently suspended device, shadowless operating lamp should be always kept in safe operating conditions by inspect connection between bottom panel of rotator for tightness of bolts and screws.


    Please operate in accordance with the requirements of Chapter III, Installation of Shadowless Operating Lamp.

    3.2 Electric Inspection

    Inspect electric connections of supply line on the power panel in top cap. Any loose connections found on terminal block shall be tightened and any oxidized terminals should be replaced. Check the protection earthing for reliability with magneto-ohmmeter.


    Specification

    Technical parameterDetails
    Illuminance≥150,000Lux/≥100,000Lux
    Color temperature4500±300K
    Color reduction index94Ra
    Illuminance depth1000mm
    Total irradiance426W/m²/580W/m²
    Size of light field160~280mm
    Lamp head diameter700/500mm
    Rated power of bulb24V/150W/150W
    Service life of illuminant1,000h
    Power supply voltageAC110-240v,50/60Hz
    Brightness adjustmentAutomatic 8-stage continuous light adjustment
    Total power consumption140W
    Total LED bulb quantity2pcs
    Lowest installation height2900mm
    Warranty1 year

    How about the package?

    PackingWooden case
    Packing sizeDouble head:91*92*37cm;80*81*36cm
    Other:122*43*72cm
    WeightDouble head:GW:19KG NW:12KG
    GW:14KG NW:8KG
    Other:GW:65KG NW:50KG

    Trial Operation of Shadowless Operating Lamp


    1. Adjust damping screws on balancer to change the pushing force and pulling force necessary for up-and-down movement of lamp body.

    2. Change the tightness of adjusting screws to control the damping force in turning lamp body around lamp frame.

    3. Change the tightness of locking knob to control the damping force in turning lamp body around cross arm.
