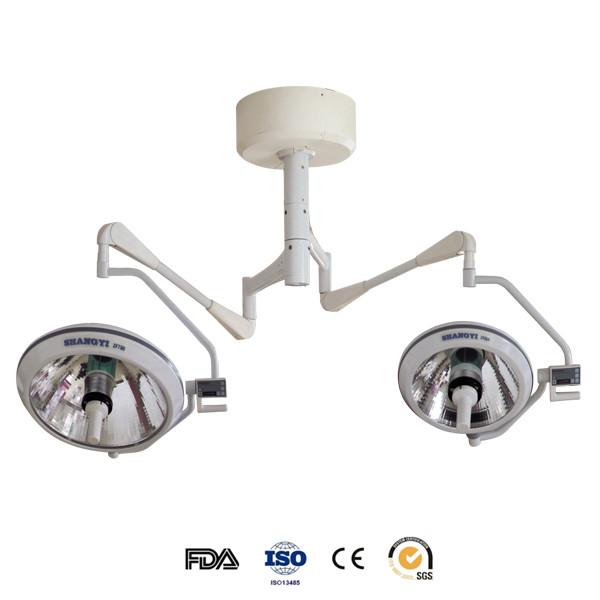

Hot Sale ZF700500 Shadowless Operating Lamp with Camera And Monitor
Product Descriptions:
Configuration:
1. Full close streamline lamp body design completely meets the
demand of the sterilization and high standard of laminar flow
purification in operation room.
2.The Whole reflection optical system is made by CAD/CAM
technology, its illumine depth is up to 1000mm.By using color
temperature compensation technology, the color reversion is uprised
3. Streamline lamp panel use Germany PC material pressing and
injecting, make the air clean and improve the cleanliness of the
operation surface
4. With advanced double switch control system,when the control
panel of surgical lamp failure,lamp head install an emergency
switch,in order to ensure the normal use of surgical lamp.the
control panel was on the spring arm joint,film touch switch,simple
for operation and it is not easy to damage
5. With spare bulb automatic switch function, when the main bulb
was burnout, spare lamp will be lighted within 0.1 Second.There's
failure indication in the handle control panel, to recommend the
bulb to be changed after operation
6. Adopting Germany long life halogen bulb, life can be up to 1500
hours.there is soft start up unit
7. Focusing system has a delicate structure and easy to change bulb
and the ceramic lamp socket;Detached handle cover can take high
temperature(≤ 140 °C) sterilization treatment
8. It can be directly upgraded to LED surgical lamp only by changing
the lamp head
MOQ:1set
| Type | ZF700500 Whole Reflection Shadowless Operating Light |
| Bulb | Halogen |
| Illuminance(Lux) | 700 Head :>150,000 Lux; 500 head :>100,000 Lux |
| Colour temperature(k) | 4500±300K |
| Colour rendering index(Ra) | 94 |
| Total irradiance (W/m2) | 426W/m² ,580W/m² |
| Size of light field (mm) | 160-280 |
| Illuminant Life | ≥1000h |
| Power supply voltage | AC110V-240V(50HZ-60HZ) |
| Rated power of bulb | 24V:150W/150W |
| Total halogen bulb quantity(pcs) | 4 pcs (2+2) |
| Lowest height of installation(mm) | 2900mm |
The ratio between irradiance
and illuminance : | ZF700:3.3mW/m²lx ZF500:4.7mW/m²lx |
| Warranty | 1 years
|
Packaging & Delivery
| 1 piece in a carton: | 91*92*37cm |
| GW/NW: | 19kg/12kg |
| |
| 1 piece in a wooden case: | 108*43*60cm |
| GW:/NW: | 46kg/35kg |
FAQ:
Operation shadowless lamp is composed of a base, a balance arm and
a lamp cap of three parts. The lamp is divided into single, double
lamp holder lamp holder.
1, 200, MINA-ZF500 operation shadowless lamp can be used as a
hanging type or movable type, but also with 500 or 700 as the twin
type (500/500) or combined (700/500) with the use of. In
2, MINA-ZF700)operation shadowless lamp can be used as a hanging
type, but also with the 700 or 600, 500 as the twin type (700/700)
or combined (700/500) with the use of.
3, YK/ZF, 360, 300, Y38, Y300, Y300, , , 800-1000mm, 100-260mm,
500mm.
4, The site operation range: ZF series lamp as mobile use, the lamp
can be up and down, left and right freely and positioning; As the
hanging, twin type or combined, cross arm tube around the fixed
seat rotates 360 degrees, the lamp body around the pipe rotation of
not less than 300 degrees, Y type pipe to move up and down not less
than 38 degrees,
5. Y tube rotation of not less than 300 degrees, the lamp body
around the Y pipe rotation is not less than 300 degrees, in the
above can arbitrarily adjust the balance point, positioning, the
lamp body from the operation site 800-1000mm inner focus, focus
diameter within 100-260mm is adjusted, the depth of not less than
500mm.
