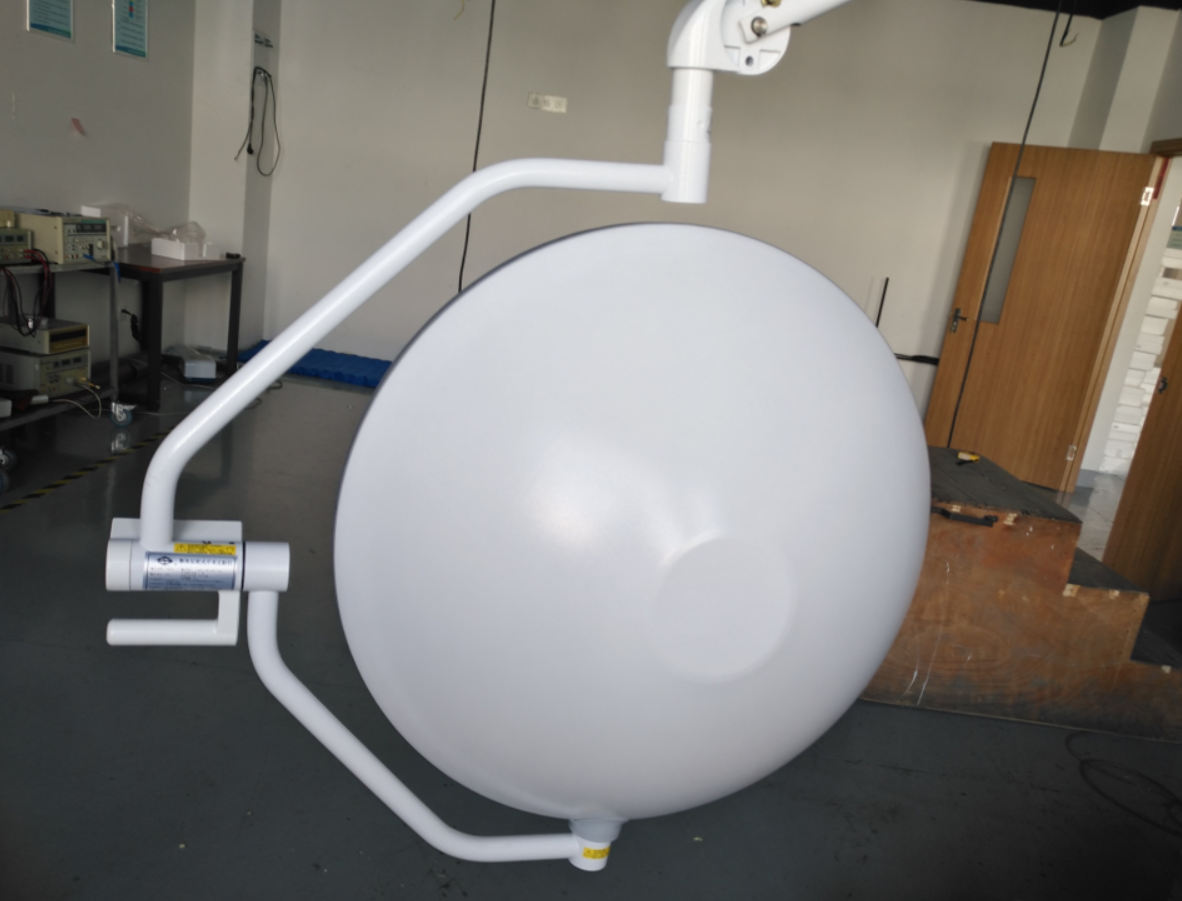

single halogen bulb 60cm diameter over 120000lux illuminance halogen shadowless operating lamp

Operation Instruction

1. Position adjustment of lamp cap

As installed, power on the lamp cap, so that it will be lit up with time-delay. Pull the handle to make the lamp cap move from upside to downside, and vice versa as well as conduct the axial rotation. Push the sterilized handle, so the lamp cap could be inverted backwards & forwards (range is up to 200°) and the right & left (range is up to 200°). Finally, the lamp cap is adjusted as you desired.

2. Rotate the sterilized handle, so as to adjust the light spot as required.

3. Switch & intensity control

Lamp cap switch is controlled by the switching push button. As switched on, the lamp cap would be lit up with time-delay. As required by the operation, the intensity of light can be adjusted via luminance enhancement button or luminance weakening button. Here, the intensity of light will be displayed on the brightness record.

Push down the power switch button, the two-color power light turns into green, brightness indicator light will be displayed on the last brightness record left by the operation shadow less lamp. Also, the light spot brightness thereof is adjusted to the related level. The control system is provided with the soft startups program, which can be used for the protection and extension of the bulb’s life. Therefore, as starting up, it is normal when the intensity of light spot is changed from darkness to brightness with a couple of seconds.

Push the light changes button to adjust the intensity of the light spot, so as to comply with the doctor from the point of vision.

Detailed specification?

How about the package?

Product Standards

The enterprise product registration standard should be applied.

Compulsory Standards

Fully apply the national standard, GB9706.1 Medical Electrical Equipment, Part I-General Requirements for Safety (equivalent to IEC 601-1, Medical Electrical Equipment, Part I-General Requirements for Safety)

Legal Statement

Our product and the related instructions, advertising articles and samples were audited and approved by the authorities, and then be protected by the law concerned.

Transportation and Storage

This apparatus shall be transported and stored in the following environments:

1) Ambient temperature: -40°C~+55°C

2) Relative Humidity: £93%

3) Atmospheric Pressure: 500hPa~1060hPa

Product details

  Shanghai Huifeng Medical Instrument Co., LTD. is headquartered in Shanghai city, China, which is known as "Oriental Paris". Innovated and developed steadily since the establishment of the company.

  With nearly 30 years of production history, the company has been developed into a high-tech enterprise with rich experience in Scientific Research, Development, Manufacturing and Sales of Listed Company.

  Specializing in the Manufacturing of LED Shadowless Operating Lamp, Operation Table, Medical Pendant, Head Bed Panel, Hospital Bed, Electrosurgical Unit, Patient Monitor, Oxygen Bag, Air Mattress and Pneumatic Tourniquet,etc. The products are competitive enough in the domestic market in China and also popular in the global market.

  The power distribution networks is mainly located in the Asia-Pacific region and Africa. Actively expands its technical cooperation with Europe, the United States and other countries. The sales based in more than 50 countries around the world. It is committed to promoting "SHANGYI" brand and “HFMED” brand. Gradually strive to achieve a global distribution of sales networks.

  Adhering to the concept of medical care of integrity and service, finds its own niche point, and creates another blue ocean market for the medical industry. Respect life-focus on professionalism，excellence，and continuous development as the highest guiding principle of action.

  "Reputation First, Service Foremost" is the Corporate Philosophy. All staff attach great importance to quality than to quantity. The company is certified to ISO9001, ISO13485, CE, SGS, and FDA. Honored as Five-star Integrity Enterprise in Shanghai and Famous Trademark in China. To maintain the good business reputation, provide well-qualified product and service to satisfy our customer.
