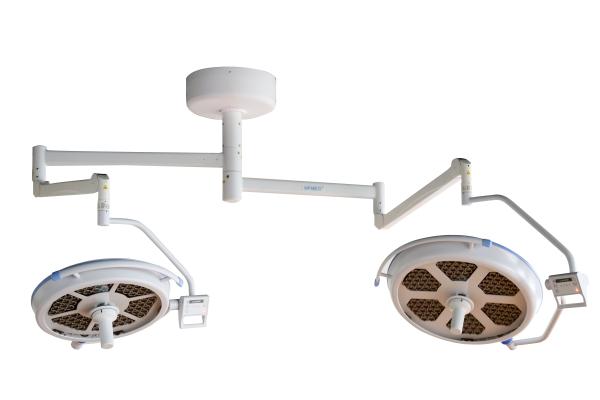

Dual Dome Shadowless LED Operating Room Lights for General Surgery
Product Descriptions:
This LED series shadowless Operating lamp can widely be used in
diversified operation occasion to meet the demand of the
illumination, and it is the ideal illumination instrument of the
modern operating theater.
The panel is made of German PC (anti-bullet plastic) by injection
moulding, makes the light softer and more reliable,Equipped with
imported balance arm suspension system, which is light and handy,
six group joints move together and moves smoothly, positions
stablely.
360 universal design can satisfy various needed height and angle in
the operation.Almost unlimited LED life expectancy delivers
tremendous product reliability and investment protection.
Product Details:
| Type | 700/500 (LED) Shadowless Operating lamp |
| Material | Aluminum Alloy |
| Illuminance(Lux) | 700 LED :>140,000 Lux; 500 LED :>120,000 Lux |
| Colour temperature(k) | 3800±500K,4400±500K,5000±500K |
| Colour rendering index(Ra) | 95 |
| Total irradiance (W/m2) | 450/390 |
| Size of light field (mm) | 160-280 |
| Illuminant Life | ≥50000h |
| Power supply voltage | AC110V-240V(50HZ-60HZ) |
| Total power consumption(W) | 140(80+60) |
| Total LED bulb quantity(pcs) | 180 pcs (18*6+12*6) |
| Lowest height of installation(mm) | 2900mm |
| Endo Mode | 3000Lux |
| Warranty | 2 years
|
Packaging & Delivery
| 1 piece in a carton: | 91*92*37cm |
| GW/NW: | 19kg/12kg |
| |
| 1 piece in a carton: | 81*80*36cm |
| GW:/NW: | 13.5kg/9kg |
| |
| 1 piece in a wooden case: | 122*43*72cm |
| GW:/NW: | 65kg/50kg |
Installation Diagram
LED shadowless lamp is DC power, no strobe, it is not easy to make
eye feeling fatigue, and the harmonic interference will not
happened with other equipment in the work area.
1. Uniform illumination
Using a special optical system, 360 ° uniform illumination of the
object being observed, no ghosting, highdefinition.
2. Long life
40 times long life than halogen bulb, reaching 60,000 hours, don’t
need change the bulb frequently.
3. Energy saving and environmental protection
LED light has high luminous efficiency, impact resistance, not
easily broken, no mercury pollution, and its light does not has
radiation pollution.
4. Storage and transport
Shadowless lamp should be stored in no more than 80% relative
humidity, temperature 0 °C ~ ± 50 °C, and non-corrosive gases and
well-ventilated room.
Shadowless lamp is fragile, vulnerable to sharp or hard objects,
scratches or damage, please use the original packaging during
transport, and transport operators by experienced transportation
agents.
5. The time of safe use
This product is safe for 10 years (from the production date ).
