CE Approved High frequency surgical diathermy machine electrosurgical unit with 5 modes ESU

Product Features

1. With high performance neutral electrode contact inspection system, system will test and evaluate the effective contact area between electrode and derma, if the contact area was found low to a danger level, system will automatic cutout and gives alarm indication.

2. High definition large LED indication, with audio&visual indication.

3. Main unit has automatic monitoring function and mistake indication function.

4. Can cut underwater, including organic cut in rich fat area

Five output mode

a) Cut: 1W ～ 400W(Load 800Ω)

b) Blend 1: 1W ～ 200W(Load 800Ω)

c) Blend 2: 1W ～ 150W(Load 800Ω)

d) Electro Coag 1: 1W ～ 120W(Load 800Ω)

e) Electro Coag 2: 1W ～ 100W(Load 800Ω)

Technical Parameters

1. Ambient temp. range: 5ºC～40 ºC

2. Relative Humidity Range: ≤80

3. Atmospheric Pressure Range: 86.0～106.0kpa

4. Power: 220V±22V,50Hz±1

5. Operating Freq.: 330～460kHz

6. Rated Power: 1100VA±10%

7. Type: CF

Power Consumption: ≤1100VA (Cut function 400)

Transportation and Storage

Application

Applicable for general surgery, thoracic surgery, orthopedics, obstetrics and gynecology, urologic surgery, cerebral surgery, microsurgery, ENT surgery and etc.

• Cut: Pure cut, can make easy operation for any organic, tissue, texture, the effect is refine cut, no escharosis on the surface.

• Blend 1: The effect is cut with tiny coagulation;

• Blend 2: Can use this function together with Endoscope, the effect is offering a better coagulation during cut;

• Electro Coag 1: Called strength electrocoagulation, or called surface coagulation, for a deep coagulation layer for organic.

• Electro Coag2: Called soft electrocoagulation, or called Point coagulation, faster coagulation, larger effect area,Can use this function together with Endoscope;

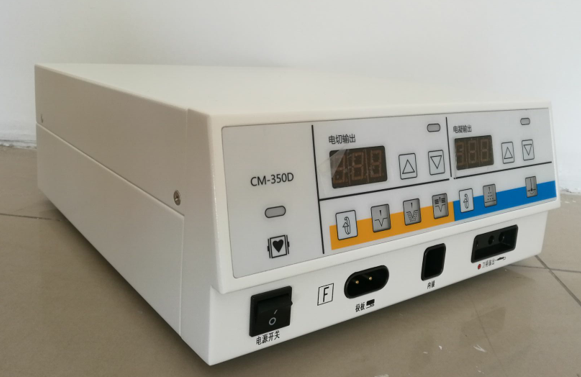

Product Show
